Connexion Set-Top-Box Remote Control Guide

TABLE OF CONTENTS

• STB Remote Buttons
• Pair Remote To STB
• Pair Remote To TV
• TV Codes
• Volume Lock

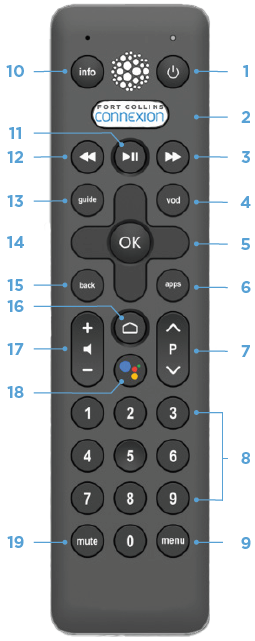

STB Remote Buttons

1 - Power - Powers your STB

2 - Connexion App - shortcut to Live TV APP

3 - Fast Froward (Playback Control) - Keys can be used when videos, music, or photos are played.

4 - VOD - Video on Demand menu

5 - Moves to highlight items in the respective direction

6 - Apps - Opens the App's Menu

7 - Channel (up and Down) - Changes the current channel.

8 - Number Pad - 0-9 Enter Channel numbers in the Guide or Full-screen Video

9 - Menu - Brings up Menu (Home, Guide, Shows, Movies, Recordings, Search)

10 - Info - Brings up info on the current channel

11 - Play / Pause (Playback Control) - keys can be used when videos, music, or photos are played.

12 - Rewind - Playback Control - keys can be used when videos, music, or photos are played.

13 - Guide - Display the TV Program Guide.

14 - OK / Select - Short Press Confirms the selection. When watching a video in the App, info on the current video appears, including the time shift bar. Long Press - Invokes the App Search menu. This is the same function as the magnifying glass in the main menu (see button 9)

15 - BACK - Returns to the previous display or exits the application.

16 - HOME (Smart Hub) - Open the Home menu and access each feature.

17 - Volume (up and Down) - Adjusts the volume

18 - Google Voice Assistant - Activates Google Voice Assistant functionality using the microphone on the top of the Remote.

19 - Mute - Mutes the audio on your device

Pair Remote To STB

1 - Press and hold the Bluetooth button on the right-hand side of the STB, let go.

2 - The Bluetooth pairing screen should come up.

3 - Press and hold the back and play buttons on the remote for about 3 seconds.

4 - Remote should be paired.

Pair Remote To TV

1 - Pair remote to Television Manually.

2 - Turn on the Television you wish to control with the Remote.

3 - Press and Hold the Rewind and down button (under the OK button) until Remote LED blinks twice.

4 - Press the 1-digit key the LED will turn Solid.

5 - Point remote at Television and press and hold the number key for your tv brand found below.

TV Codes

Gundig - 1

Hisense - 2

LG - 3

Panasonic - 4

TLC - 4

Philips - 5

Samsung - 6

Vizio - 6

Sharp - 7

Skyworth - 8

Sony - 9

Toshiba - 0

Volume Lock

1 - Press and hold Rewind and Navigation Down (LED Blinks Twice)

2 - Press Volume up Key

3 - Enter Corresponding Device Digit To lock volume STB - 0 TV - 1

4 - The LED will blink twice
