Intro

This article is to detail the setup at St Lukes on 2000 Stover St
Account number - 200924

Name - ST LUKES EPISCOPAL CHURCH
Address - 2000 STOVER ST

                FORT COLLINS CO 80525

Equipment

ONT - XS-230X-A
Calix - 1 U6T and 3 U4s

Phone - they have one phone line running from TEL1 on the ONT direct into their fire alarm panel in the same room

Setup

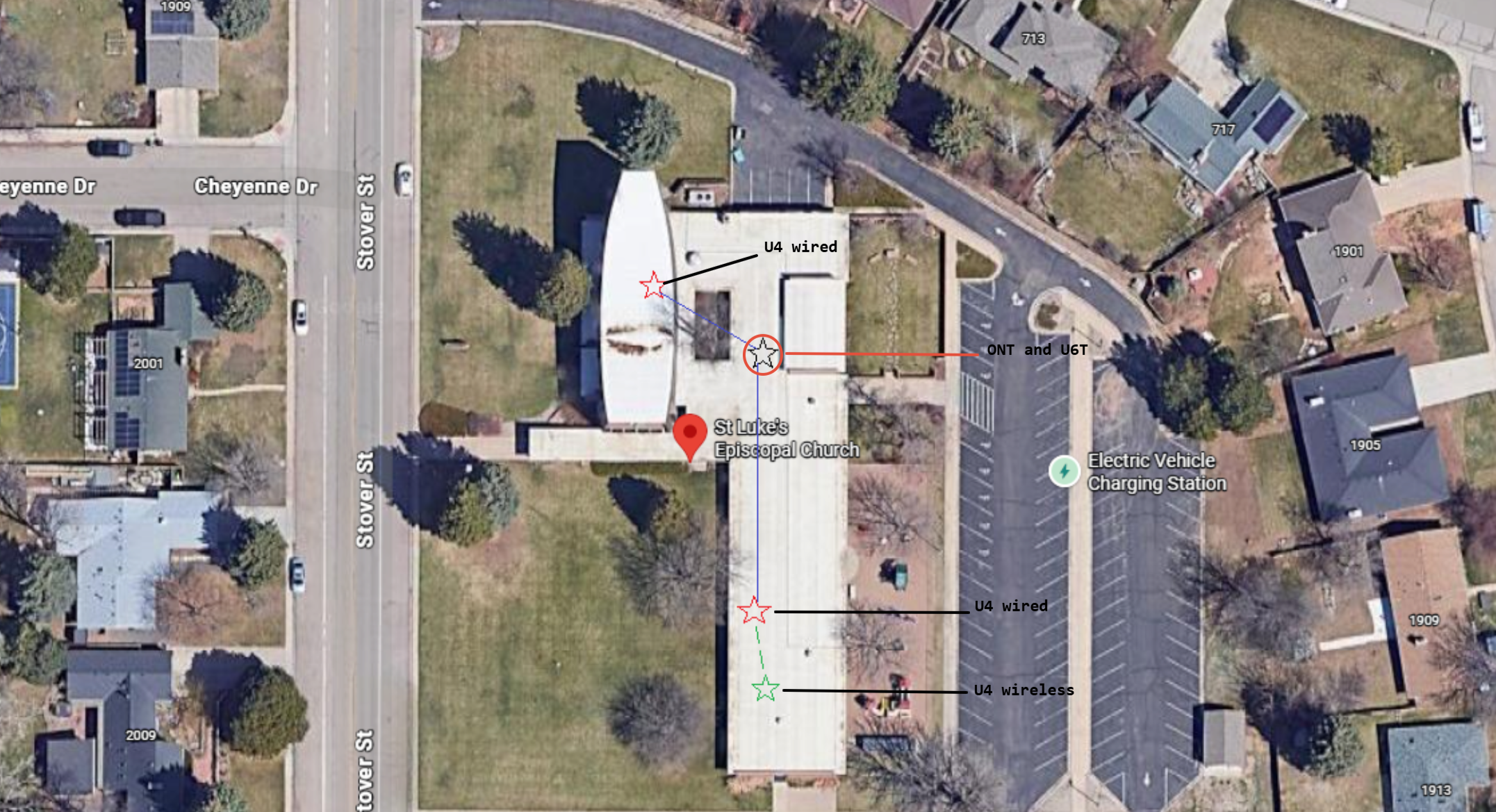

Here is a satellite image of their building with a rough diagram of how the equipment is setup overlayed:

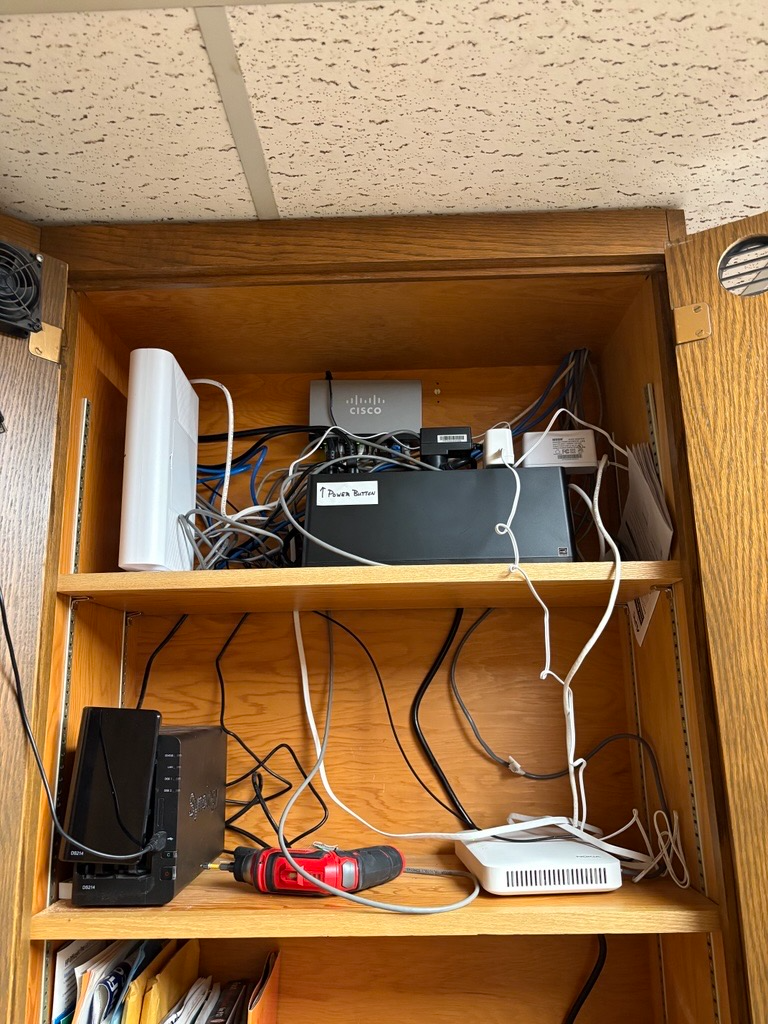

The circled star in the center of the main building area is where the fiber comes in, and the ONT and U6T are housed here:

They also have 2 Ethernet runs to two different parts of the building, one goes into the west area of the building in the main sermon hall - we have a U4 placed here. The other wired U4 is down the hallway in an office of someone named Connie. They don't have another Ethernet run for the 3rd U4 but it is wirelessly paired and they wanted it to help cover the very end of the hallway as that is where the signal is weakest.

It was discussed with them to consider running another Ethernet cable through the drop ceiling for a more reliable connection
