About the Nokia Gateway (ONT)

Gateway 6 (G-2426G-B), GPON residential gateway ONT

Supports 802.11 b/g/n/ax 4x4 Wireless 2.4 GHz MIMO; Channel bandwidth 20, 40 MHz

Supports 802.11ac 4x4 Wireless 5 GHz Mu-MIMO; Channel bandwidth 20, 40, 80 MHz

Four Gigabit standard RJ-45 10/100/1000 Mbps, auto negotiating Ethernet ports and MDI/MDIX auto sensing

Two POTS ports with R-J11 connectors

One USB 3.0 port

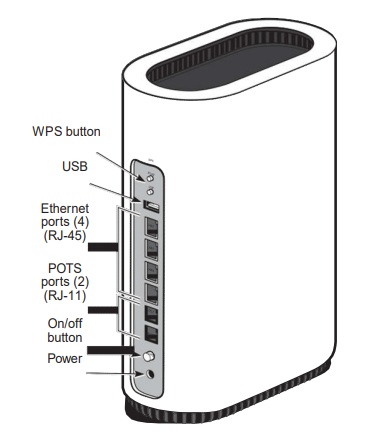

WPS on/off button - The Wi-Fi Protected Setup (WPS) button enables and disables the WPS.

WLAN on/off button - This button will enable/disable the wireless broadcast

USB Port -  1 USB 3.0 port on the back of the ONT

POTS ports TEL1 and TEL2 - This connection is provided through an RJ-11 port. The POTS port supports voice services.

Ethernet ports LAN1 to LAN4 This connection is provided through Ethernet RJ-45 connectors. Up to four 10/100/1000 Base-T Ethernet interfaces are supported.The Ethernet ports can support both data and in-band video services on all four interfaces.

Power port This connection is provided through the power connector. A power cable fitted with a barrel connector is used to make the connection.

Reset button Pressing the Reset button for less than 10 seconds reboots the ONT; pressing the Reset button for 10 seconds resets the ONT to the factory defaults, except for the LOID and SLID.

WLAN button Wi-Fi service is compliant with IEEE 802.11 standards and is enabled and disabled using the WLAN button.

WPS button The Wi-Fi Protected Setup (WPS) button enables and disables the Wi-Fi Protected Setup function

Gateway 3 (G-240W-E), GPON residential gateway ONT

Supports 3x3 802.11b/g/n 2.4 GHz wireless LAN (WLAN) interface

Supports 4x4 802.11ac 5 GHz WLAN interface with multi-user multiple input, multiple output (MU-MIMO)

Two POTS ports with R-J11 connectors

Four Gigabit standard RJ-45 10/100/1000 Mbps

Two USB ports

Top LED for simple and intuitive status indication

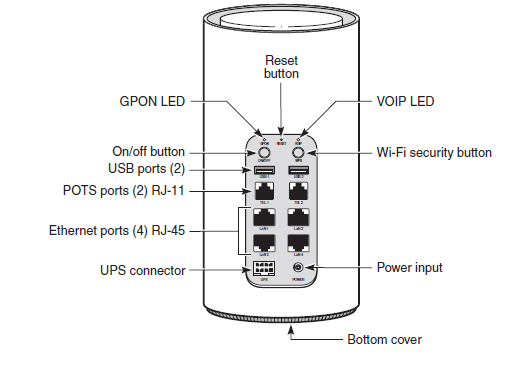

Connection Description:

GPON LED - This LED is used to show the start of the GPON uplink.

VOIP LED - This LED is used to show the start of VOIP services.

On/Off button - This button powers the unit on or off.

WPS ON/Off button - This button is used to power the WiFi Protected Setup (WPS) of new WiFi devices on or off.

USB 1 and USB 2 - This connection is provided through two USB 2.0 interfaces.

TEL1 and TEL2 - This connection is provided through two RJ-11 POTS ports.

LAN 1 to LAN 4 - This connection is provided through Ethernet RJ-45 connectors. Up to four 10/100/1000 Base-T Ethernet interfaces are supported. The Ethernet ports can support both data and in-band video services on all four interfaces.

UPS - This connection is a reserved interface provided through a UPS cable.

Reset button - Pressing the Reset button for less than 10 seconds reboots the device; pressing the Reset button for 10 seconds resets the device to the factory defaults.

Power input - This connection is provided through the power connector. A power cable fitted with a barrel connector is used to make the connection.
