Connexion has begun to transition to a two-box in-home hardware solution.  We use a Nokia XGS ONT in combination with a Calix U4, U6.3 or U6T Wi-Fi router to provide routing and Wi-Fi functionality for our subscribers.  You are also free to use your own router in place of the Connexion router if you'd like.  A Connexion fiber ONT is required for any service.

Technical specifications about our Calix Wi-Fi routers can be found on this page.  Please download the Connexion Wi-Fi app to manage your Calix equipment using your smartphone.

Play Store App Download

Apple Store App Download

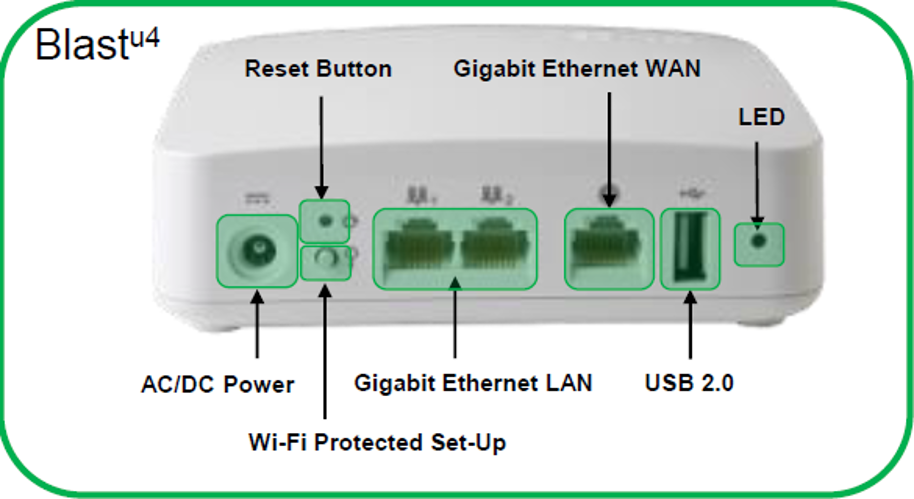

Calix U4

Technical Specifications

• 4x4 Wi-Fi Antenna Array (2x2 @ 2.4 GHz and 2x2 @ 5 GHz)
• Wi-Fi Mesh Compatible
• 2 x GigE LAN ports
• 1 x GigE WAN port
• 1.2 Gbps (5 GHz) Radio Backhaul with GigaSpire
• 2x2DL/UL MU-MIMO with beamforming (5 GHz radio)
• 2x2 DL/UL MU-MIMO with beamforming (2.4 GHz radio)

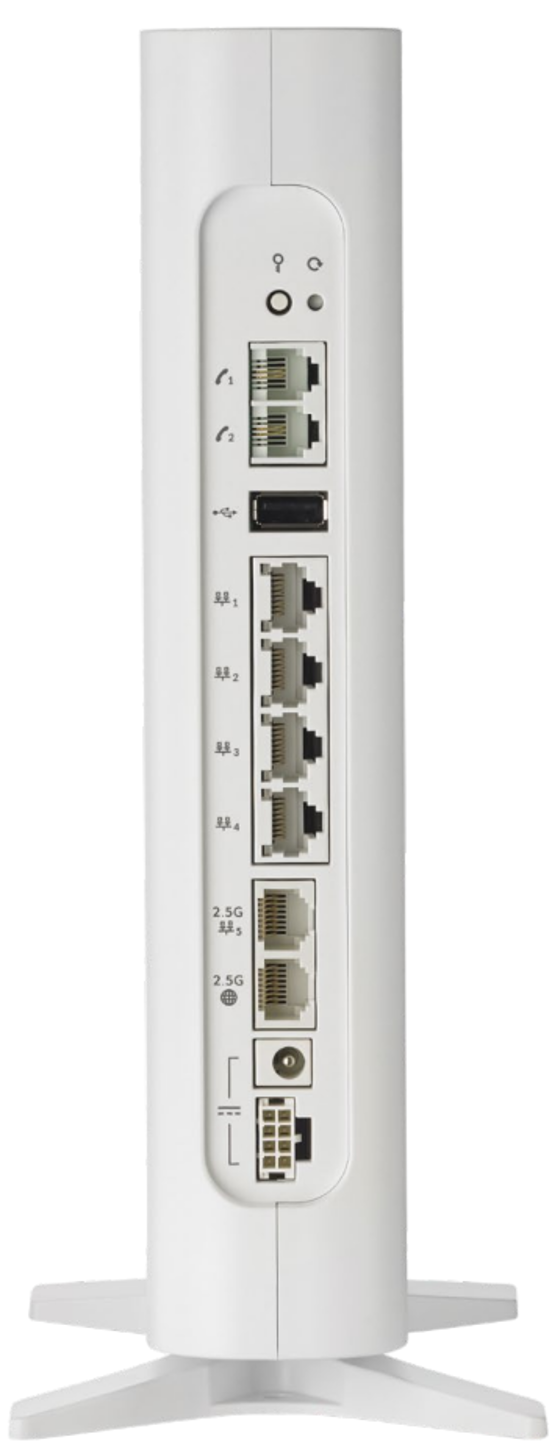

Calix U6.3

Technical Specifications

• 4x4 5GHz radio 802.11 a/n/ac/ax
• 2x2 2.4GHz radio 802.11 b/g/n/ax
• Wi-Fi Mesh Compatible
• Supports up to 250 wireless clients
• 1 x 2.5 GigE WAN port
• 1 x 2.5 GigE LAN port
• 4 x GigE LAN ports

Dimensions

• Width: 2 in (5.1 cm)
• Height: 10.1 in (25.7 cm)
• Depth: 7 in (17.8 cm)
• Weight: 2.6 lbs. (1.2 kg)

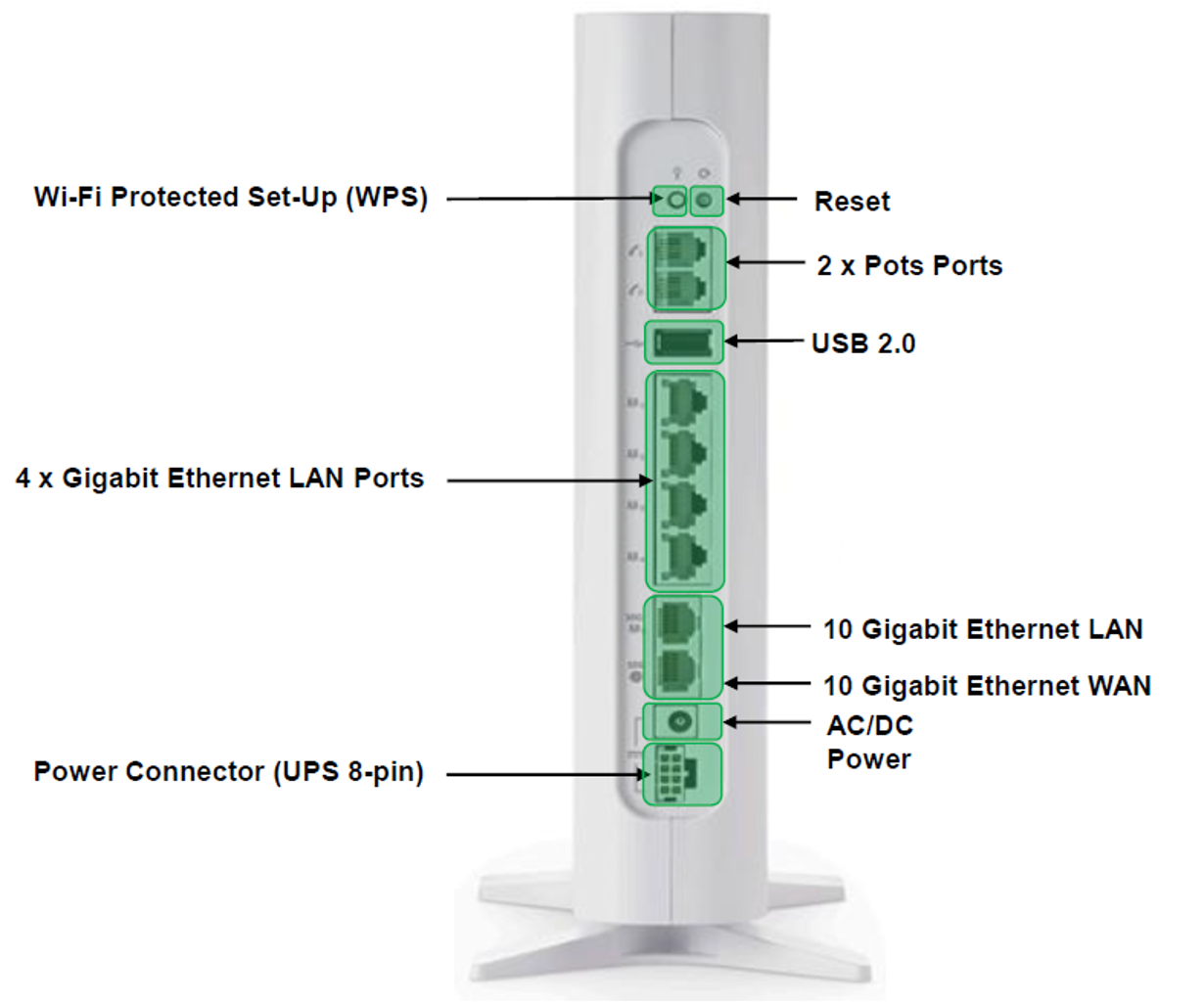

Calix U6T

Technical Specifications

• Included with Connexion Premier 10Gbps service
• 6x6 Wi-Fi Antenna Array (2x2 @ 2.4 GHz and 4x4 @ 5 GHz)
• Wi-Fi Mesh Compatible
• 4 x GigE LAN ports
• 1 x GigE WAN port
• 4x4DL/UL MU-MIMO with beamforming (5 GHz radio)
• 2x2 DL/UL MU-MIMO with beamforming (2.4 GHz radio)
• 2 x POTS ports
• Supports up to 500 wireless clients

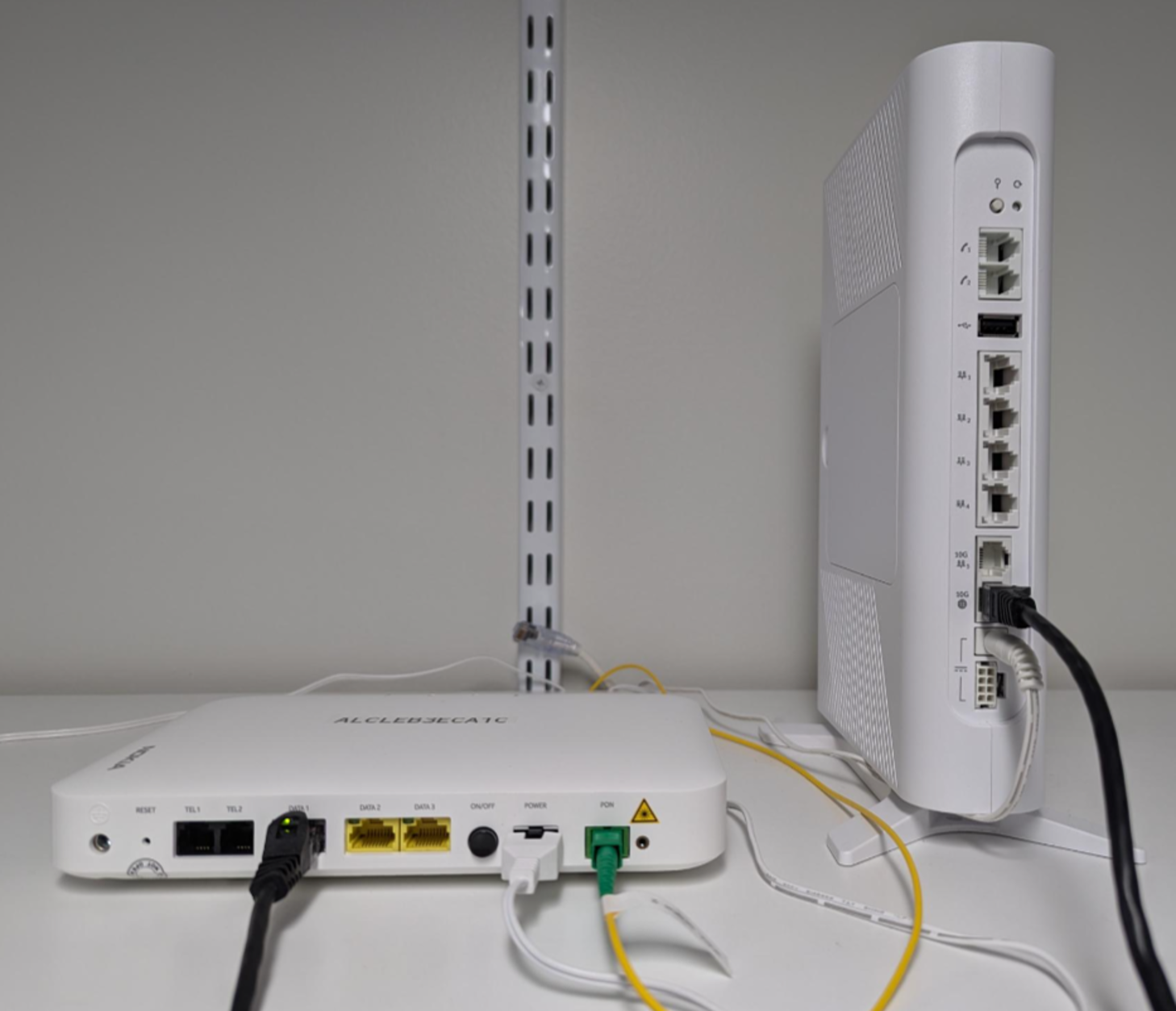

Calix U6T Installation Example
