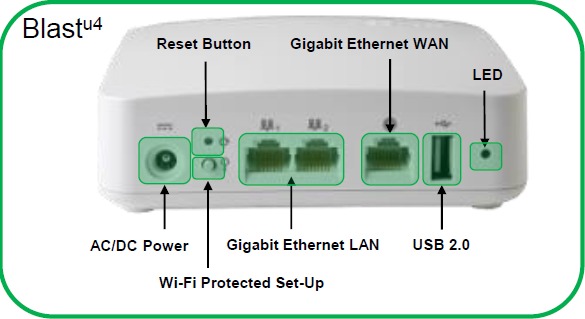

Calix GigaSpire BLAST u4 Details

• 4x4 Wi-Fi Antenna Array (2x2 @ 2.4 GHz and 2x2 @ 5 GHz)
• Wi-Fi Mesh Compatible
• 2 x GigE LAN ports
• 1 x GigE WAN port
• 1.2 Gbps (5 GHz) Radio Backhaul with GigaSpire
• 2x2DL/UL MU-MIMO with beamforming (5 GHz radio)
• 2x2 DL/UL MU-MIMO with beamforming (2.4 GHz radio)

Calix GigaSpire BLAST u6t Details

• 6x6 Wi-Fi Antenna Array (2x2 @ 2.4 GHz and 4x4 @ 5 GHz)
• Wi-Fi Mesh Compatible
• 4 x GigE LAN ports
• 1 x GigE WAN port
• 4x4DL/UL MU-MIMO with beamforming (5 GHz radio)
• 2x2 DL/UL MU-MIMO with beamforming (2.4 GHz radio)
• 2 x POTS ports
• DFS channel certified (R24.2)
• Supports up to 500 wireless clients

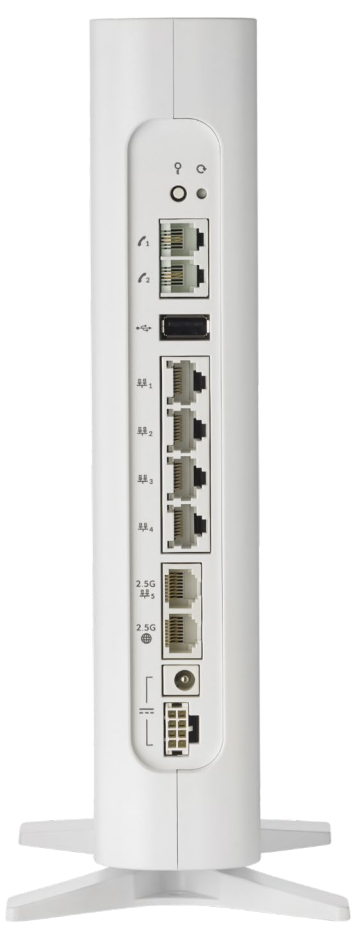

Calix GigaSpire BLAST u6.3

4x4 5GHz radio 802.11 a/n/ac/ax

2x2 2.4GHz radio 802.11 b/g/n/ax

Wi-Fi Mesh Compatible

Supports up to 250 wireless clients

1 x 2.5 GigE WAN port

1 x 2.5 GigE LAN port

4 x GigE LAN ports

Dimensions

• Width: 2 in (5.1 cm)

• Height: 10.1 in (25.7 cm)

• Depth: 7 in (17.8 cm)

• Weight: 2.6 lbs. (1.2 kg)
